Aiko · Solar Panel

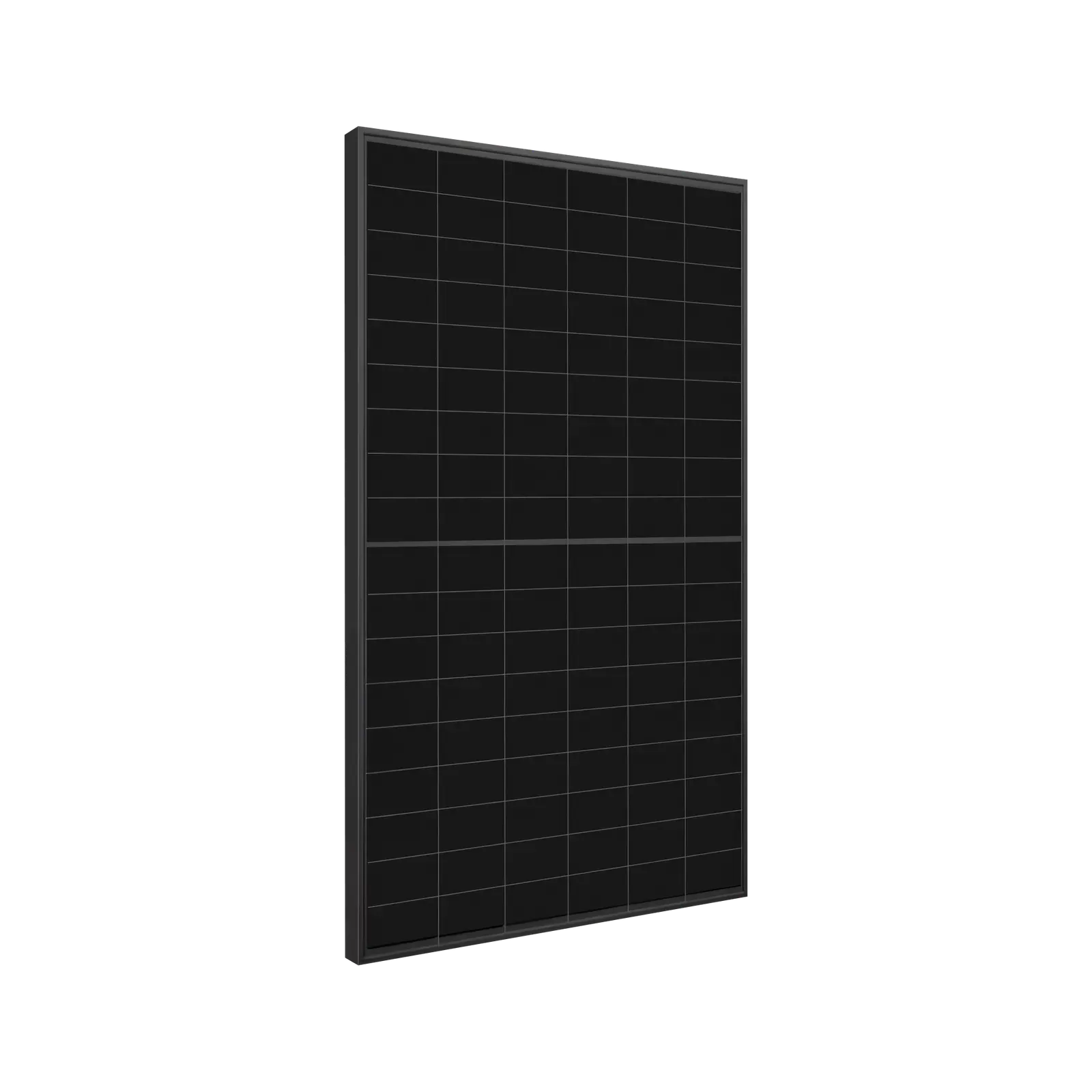

Aiko Neostar 3S+ 475W Glass-Glass Full Black
- Model
- A475-MCE54Db
- Article number
- 14531744
- EAN
- 4068707011756
- Manufacturer code
- A475-MCE54Db
- Manufacturer
- Aiko
- Availability
on request
Export: master data, EAN, dimensions, weight, pallet factor, image and document URLs as CSV.
Technical data
- PV Power
- 475 W
- Module Efficiency Factor (STC)
- 23.8
- Cell Type
- N Type ABC
- Number Of Cells
- 108 (Half-Cut Cell)
- PV Product Type
- Glass-Glass
- Frame Color
- Black
- Back Sheet Color
- Full Black
- Performance Warranty
- 30
- STC- Open Circuit Voltage (Voc/V)
- 40.7
- Connector Type
- MC4-EVO2
Logistics data
- EAN
- 4068707011756
- Unit dimensions (W × H × D)
- 1,134 × 1,762 × 30 mm
- Net weight
- 24.5 kg
- Units per pallet
- 37
- Units per 40 ft container
- 222
- Commodity code (HS)
- 85414300
- Origin
- China
Documents
| Data sheet DE | 14531744_Aiko_Neostar_3SPlus54_A_MCE54Db_460_490W_Datenblatt.pdf | DE | Download |
| Data sheet EN | 14531744_Aiko_Neostar_3S_Plus_54_A_MCE54Db_460W_485W_Modul.pdf | EN | Download |
| CE declaration | Zertifikat1_Aiko_Neostar_3S_Plus_54_AIKO_A_MCE54Db_460_475W_PV_Modul.pdf | — | Download |
| CE declaration | Zertifikat2_Aiko_Neostar_3S_Plus_54_AIKO_A_MCE54Db_460_475W_PV_Modul.pdf | — | Download |
| CE declaration | Zertifikat3_Aiko_Neostar_3S_Plus_54_AIKO_A_MCE54Db_460_475W_PV_Modul.pdf | — | Download |
| Manual | Aiko_Dual_Glass_Benutzerhandbuch.pdf | — | Download |
| Manual | Aiko_Neostar_2S_Doppelglas_AIKO_A455_MAH54Db_User_Manual_EN.pdf | EN | Download |
Request
Request article 14531744.
Aiko Neostar 3S+ 475W Glass-Glass Full Black, A475-MCE54Db. Tell us the quantity and delivery route. You will receive stock, terms and listing documents within two working days.
