TCL · Wall Split Air Conditioner

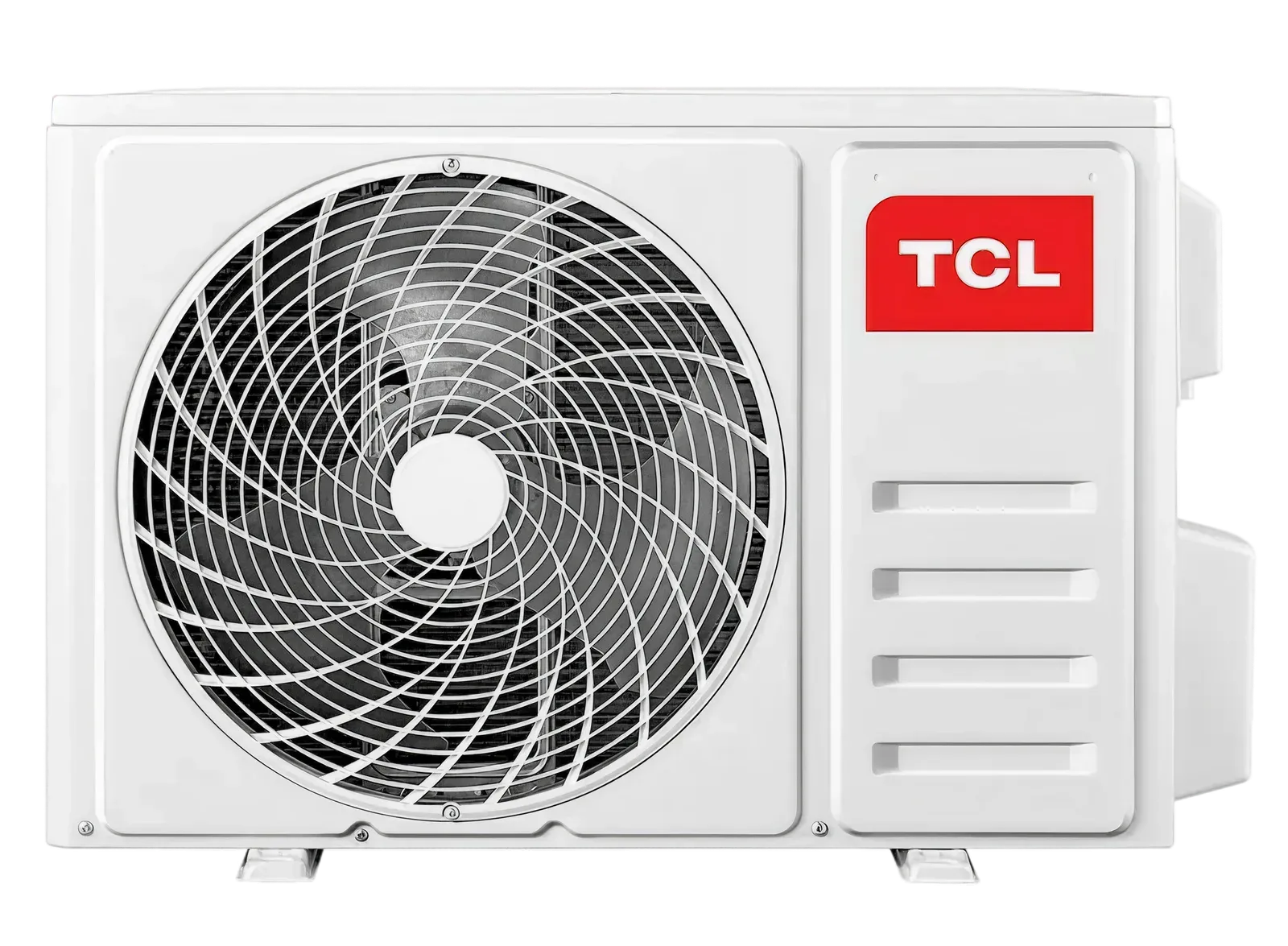

TCL VoxIN 9K Outdoor Unit
- Model
- TAC-09CHSD-UG11V3A-O
- Article number
- 14531908
- EAN
- 6931084760365
- Manufacturer code
- TAC-09CHSD-UG11V3A-O
- Manufacturer
- TCL
- Availability
on request
Export: master data, EAN, dimensions, weight, pallet factor, image and document URLs as CSV.
Technical data
- Cooling Capacity
- 9,000 BTU/h
- Heating Capacity
- 12,000 BTU/h
- SEER
- 8.5
- SCOP
- 4.6
- Energy Efficiency Class (Cooling)
- A+++
- Energy Efficiency Class (Heating)
- A++
- Refrigerant / Fluid
- R32
- Sound Pressure Level dB(A)
- 52
- Sound Power Level dB(A)
- 62
Logistics data
- EAN
- 6931084760365
- Unit dimensions (W × H × D)
- 787 × 498 × 290 mm
- Net weight
- 22 kg
- Carton dimensions
- 818 × 520 × 325 mm
- Gross weight
- 24 kg
- Units per 40 ft container
- 250
- Commodity code (HS)
- 84151090
- Origin
- China
Documents
| Data sheet DE | 14531908_TCL_VoxIN_DE_Datenblatt.pdf | DE | Download |
| Data sheet EN | 14531908_TCL_VoxIN_EN_Datasheet.pdf | EN | Download |
| Energy label | TCL_TAC_09CHSD_UG11V3A_Energy_Label.png | — | Download |
| CE declaration | AC_TCL_TAC_09CHSD_UG11V3A_ERP.pdf | — | Download |
| Manual | TCL_Remote_Controller_User_Manual.pdf | — | Download |
| Manual | TCL_VoxIN_UG11V3A_UM_User_Manual.pdf | — | Download |
Variants
More models: Wall Split Air Conditioner.
| Model | Capacity | Availability | View model |
|---|---|---|---|
| TCL VoxIN 12K Outdoor Unit TAC-12CHSD-UG11V3A-O · Art. 14531910 · EAN 6931084760372 | 3.5 kW Cooling (12,000 BTU/h) | View model | |
| TCL VoxIN 18K Outdoor Unit TAC-18CHSD-UG11V3A-O · Art. 14531912 · EAN 6931084760389 | 5.3 kW Cooling (18,000 BTU/h) | View model | |
| TCL VoxIN 24K Outdoor Unit TAC-24CHSD-UG11V3A-O · Art. 14531914 · EAN 6931084760396 | 7 kW Cooling (24,000 BTU/h) | View model |
Request
Request article 14531908.
TCL VoxIN 9K Outdoor Unit, TAC-09CHSD-UG11V3A-O. Tell us the quantity and delivery route. You will receive stock, terms and listing documents within two working days.
